Pneumatic Diaphragm Single Seat Control Valve

ntrol Valve" src="http://img.worldinout.com/img/202105/15/22014663402547.jpg" data-src="/images/Lapar-Valve/Control-Valve/LPH11/LPH11-1.jpg" alt="LPH11 Pneumatic Diaphragm / Piston Single Seat Control Valve" width="700" height="426" style="margin: 0px; padding: 0px; border: 0px none; outline: 0px; vertical-align: baseline; background: transparent; max-width: 100%;" />


Single Seat Control Valve
  • 💼
    Main Business Machinery
  • 📅
    Founded 2022
  • 💰
    Revenue 100万人民币
  • 📊
    Size 1-49
← Back to Product List

Single Seat Control Valve

Unit Price
Negotiable
Inquiries
N/A
View
0
location
Argentina/Ushuaia After Payment3day
stock
10000
Expired
No Expiry
Update Time
2025-12-31 16:53

Detailed Information

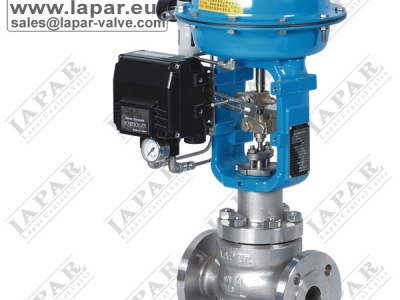

LPH11 Single Seat Control Valve with Pneumatic Diaphragm or Electric Actautor

ntrol Valve PDF catalogue download" src="http://img.worldinout.com/img/202105/15/22014622402547.gif" alt="LPH11 Diaphragm / Piston Single Seat Control Valve PDF catalogues" width="200" height="112" style="margin: 0px; padding: 0px; border: 0px none; outline: 0px; vertical-align: baseline; background: transparent; max-width: 100%; float: right;" />

Feature

  1. Compact structure, fewer parts, light weight
  2. Wiring is simple, easy to operate
  3. Adjusted performance, small pressure loss, flow ability
  4. Able to apply a small amount of a certain viscosity and fiber medium

Parameter

<tr">Flow characteristics<td">Straight line, Equal percentage<td">Input signal<td">Body & Cap Material

seline; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; width: 720px; max-width: 100%; border-collapse: collapse; border-spacing: 0px; font-size: 12.8013px; color: rgb(68, 68, 68); font-family: arial, sans-serif;">
Actuator Pneumatic, Pneumatic diaphragm, Electric
Control On-off, Modulating, Inteligent
DN 20~400mm
Pressure PN1.6~25.0Mpa, ANI150~1500Lbs, JIS10~100K
Temperature Std: -20~200°C, -40~250°C, -60~250°C
Cooling type: -40~450°C, -60~450°C
Ambient temperature -20~55°C
Inherent rangeability 50:1
Gas supply 0.14~0.3Mpa
4~20MA, 1~5V
Output signal 4~20MA, 1~5V
Connection Flange
Structure Standard Type, Bellows Seal Type, Cooling Type
WCB, WCC, WC6, CF8, CF8M, CF3, CF3M, etc
Stem Material 304, 316, 316L 17~4PH
Spool Material 304, 316, 316L, 17~4H, Surfacing Stellite
Packing Material PTFE, RTFE, Flexible graphite
Medium Gas, Water and Oil, etc
Optionial Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
Remark Commissioning has been completed in the factory
connected to the gas source and the input signal can be used
